E-CUT Stepper Motor Auto Contour
Cutting Plotter Vinyl Cutter
1. Sheet metal stand with basket
2. Three interfaces: USB / COM / U-disk
3. ARM main board, support coreldraw directly output
4. Casting carriage, high precision
5. Can cut 1mm size
6. Automatic contour function
7. Stepper motor, low sound, high speed
8. Double layer carton packing
9. One year warranty
10. In-time after sale service
Parameters:
Model | AB-720 | AB-1350 |
Max. media width | 720mm | 1350mm |
Max. cutting width | 630mm | 1260mm |
Main board | ARM | |
Language | CH/EN | |
Contour type | Auto contour | |
Accuracy | +/-0.01mm | |
Feeding accuracy | 10m | |
Connectors | USB/COM/U-disk | |
Roller | Steel thorn roller | |
Drive motor | Stepper motor | |
Carriage | Casting car | |
Support | Metal bracket with basket | |
Speed | 20-800mm/s | |
Force | 20-500g | |
Power supply | AC 90-240V | |
Recommend software | Signmaster | |
Machine power | < 100W | |
Packing Size | 1020*330*420mm | 1650*330*420mm |

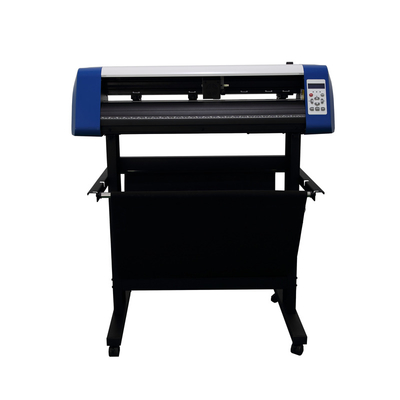

Front View
Side ViewCasting Carriage Interfaces Integrated Pinch Rollers Power Switch
Packagings:
Double cartons
